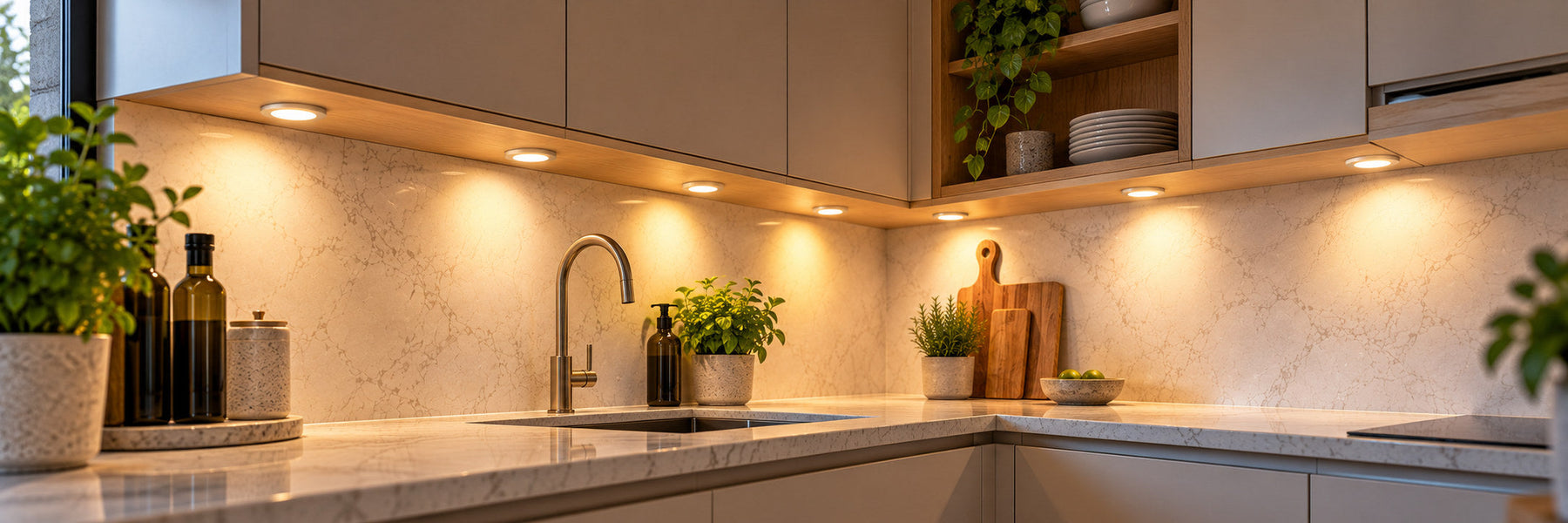

Best Under Cabinet Lighting for Different Kitchen Layouts

Two kitchens can have the same amount of worktop and still need completely different lighting plans. A long straight run, an L-shaped corner and a kitchen with a separate coffee station all create different challenges when you want useful light in the right places.

This guide explains how to plan under cabinet lighting for different kitchen layouts — from one-wall and galley kitchens to L-shaped and U-shaped rooms — and when it makes sense to divide your lighting into independently controlled zones.

Start with the illuminated worktop, not the kitchen shape

Before choosing how many lights to buy, stand in your kitchen and identify the places where you actually prepare food, make drinks, clean up or need task lighting. Some worktop sections sit under wall cabinets; others are beneath a window, a cooker hood or open space where an under cabinet fitting may not have anywhere suitable to mount.

Sketch the kitchen as a series of illuminated runs. Measure the length of each relevant cabinet section and note the worktop depth, corners, gaps, sockets and any obstacles that could affect cabling or fitting positions. A tall unit or an extractor can divide two otherwise adjacent runs.

For many compact round lights, 250–300mm between centres is a helpful starting point. For task lighting, testing the fitting around 30–50mm back from the cabinet's front edge is also useful. Neither measurement is compulsory: light output, beam spread, cupboard depth and the actual worktop can change the ideal layout. For more detail, see how many under cabinet lights you need and where to position them.

1. Straight or one-wall kitchens: keep the lighting consistent

A one-wall kitchen usually has a main run of cupboards above the worktop. The simplest plan is often to distribute the fittings evenly across the usable illuminated length, rather than putting one light underneath every cupboard door. Cabinet widths can vary, while worktop lighting should feel consistent.

If the entire run is used together, one control zone may be convenient. One switch or compatible control can operate that group of lights from its matched 24V driver. If one end is a separate coffee station or a distinct display area, you might prefer to give that section its own zone.

Style to consider: Vela Slim Surface Round if you want a discreet round fitting without a large recess, or Linea Select if you prefer a defined rectangular light. The correct spacing method differs between round and linear designs.

2. L-shaped kitchens: treat the corner as two lighting runs

An L-shaped kitchen introduces a change of direction, so spacing the fittings in one continuous mathematical line rarely produces the best result. Instead, plan each straight run separately and pay particular attention to the corner, where neighbouring light beams may overlap or leave a darker patch.

Think about how you use the two sides. Perhaps the long side contains the main preparation worktop and the short return contains the kettle and toaster. Both sides can switch together if that suits your routine; they only need separate lighting zones when you want independent control, a different sensor or a different light choice.

Do not assume a corner cupboard creates a convenient place for every cable or driver. Measure the route behind or above the units, plan any compatible extension leads and keep the driver accessible in accordance with its installation requirements.

3. U-shaped kitchens: plan each side before choosing zones

A U-shaped kitchen may have three worktop runs, two corners and several different jobs happening around the room. Start by identifying where the upper cupboards actually exist. A sink beneath a window, for example, may have no wall cupboard above it, so a standard under cabinet fitting will not light that section from overhead.

Plan the three sides as distinct physical runs. Then decide how many control zones are useful. Three worktop runs do not automatically require three electrical zones; equally, putting every light on one control may be inconvenient if the kitchen has different activities.

Those are example uses, not mandatory zones. If all the task lights should operate together, a simpler arrangement may be better. The Loops Builder supports multiple independently configured zones so you can choose the layout that suits the household.

4. Galley kitchens: light both sides without visual clutter

In a galley kitchen, two parallel runs can create excellent task areas. However, cabinets, windows and appliances may not be symmetrical. Plan lighting according to the work surfaces beneath available upper cabinets, not by mirroring the same number of lights on both sides.

If the two sides perform different jobs, separate zones can be convenient. If you generally switch the lights on and off together, one correctly designed zone may be preferable. Pay attention to the route between sides: the low-voltage cabling, available access and location of the driver must work safely in the real room.

For compact kitchens with shallow cabinets, a low-profile surface fitting such as Vela or a suitable Eclipse recessed light may suit the look, but recessed fittings need the correct hole, depth and cable clearance.

5. Kitchens with islands or breakfast bars: know where under cabinet lights do and do not fit

An island changes the room's lighting requirements, but most islands do not have overhead wall cupboards. That means ordinary under cabinet task lights cannot simply be used to illuminate the island worktop from above. Island pendants, suitable ceiling lighting or other properly designed fixtures may be needed for that job.

Under-cabinet or furniture lighting might still be relevant beneath a suitable overhanging shelf, within a display niche or in an appropriate fitted furniture section. Those are different installation conditions and should be checked against the chosen fitting's specification and location.

Practical approach: use the 24V Builder for supported cabinet or fitted-furniture lighting zones, not as a general island pendant-light planner or flexible LED strip designer.

6. Coffee stations, pantry cupboards and display areas: why extra zones can help

Some of the most effective kitchen lighting is outside the main food-preparation run. A coffee station might be used early in the morning without needing the entire kitchen illuminated. A display cupboard might benefit from a door sensor, while a pantry can have different mounting and access requirements.

The Loops 24V Project Builder allows you to configure zones separately, including compatible controls. That makes it possible to plan a main worktop zone with one control preference and a separate cabinet zone with another. A sensor controls the compatible lights in its zone; it is not automatically one sensor per individual light.

For more on those choices, browse the eight Loops 24V light styles and compare the available control routes in the Project Builder.

How many lighting zones do you actually need?

It is easy to confuse a lighting run with a lighting zone. A run is a physical section you want to illuminate. A zone is a group of compatible lights that share a driver and operate as one control group. You can plan several physical areas together when the layout and compatible connections allow, but split them into zones when they must behave differently.

The Builder supports up to 36 lights per zone, subject to the specific products, driver capacity and compatible connections. It matches a suitable driver and any required distribution as you build, but you still need to measure realistic cable routes and check the installation space.

Which under cabinet light style suits your kitchen?

The layout tells you where light is needed. The fitting tells you how it looks. Different designs can work in the same kitchen, and the Loops 24V Builder offers eight individual light styles rather than a cut-to-length LED tape system.

If you want brightness adjustment, choose a fitting and control designed for it. Linea Compact, Linea Select and Linea Pure are non-dimmable; colour-temperature selection on relevant styles is not the same thing as dimming. A conventional wall on/off switch is not a wall dimmer for the Loops 24V driver.

How the Loops Lighting Project Builder helps with different layouts

You do not have to manually select a driver size or work out every power connection before starting. The Builder begins with your first zone and walks through style, finish, white-light choice, quantity, driver, control and accessories. It calculates a suitable supported configuration and shows a running project price.

For example, a homeowner with an L-shaped kitchen might build Zone 1: Main Worktop and Zone 2: Coffee Area. They can give each zone its own meaningful name, choose the preferred compatible control, and review the completed project before adding it to the basket.

Remember: the Builder matches compatible parts for its supported eight individual 24V light styles. It does not replace a physical survey of the kitchen, and it does not configure LED tape, island pendants or general ceiling lights.

Common kitchen lighting layout mistakes to avoid

Any work involving mains electrical connections must be completed appropriately by a suitably competent person. Follow the installation instructions for each fitting and driver, including clearance, location, ventilation and access. Test the light pattern in position before permanent fixing or drilling.
