Heavy Duty Garage Floor Tiles

Yes, where the concrete or screed is hard, solid, sufficiently level and clean. Repair serious damage and investigate damp or active water ingress before fitting a covering.

The Coinect tile is reported as load-tested to 3.35 tonnes per tyre when installed on a solid, level subfloor. Check the latest product data and installation conditions before ordering for your vehicle or use case.

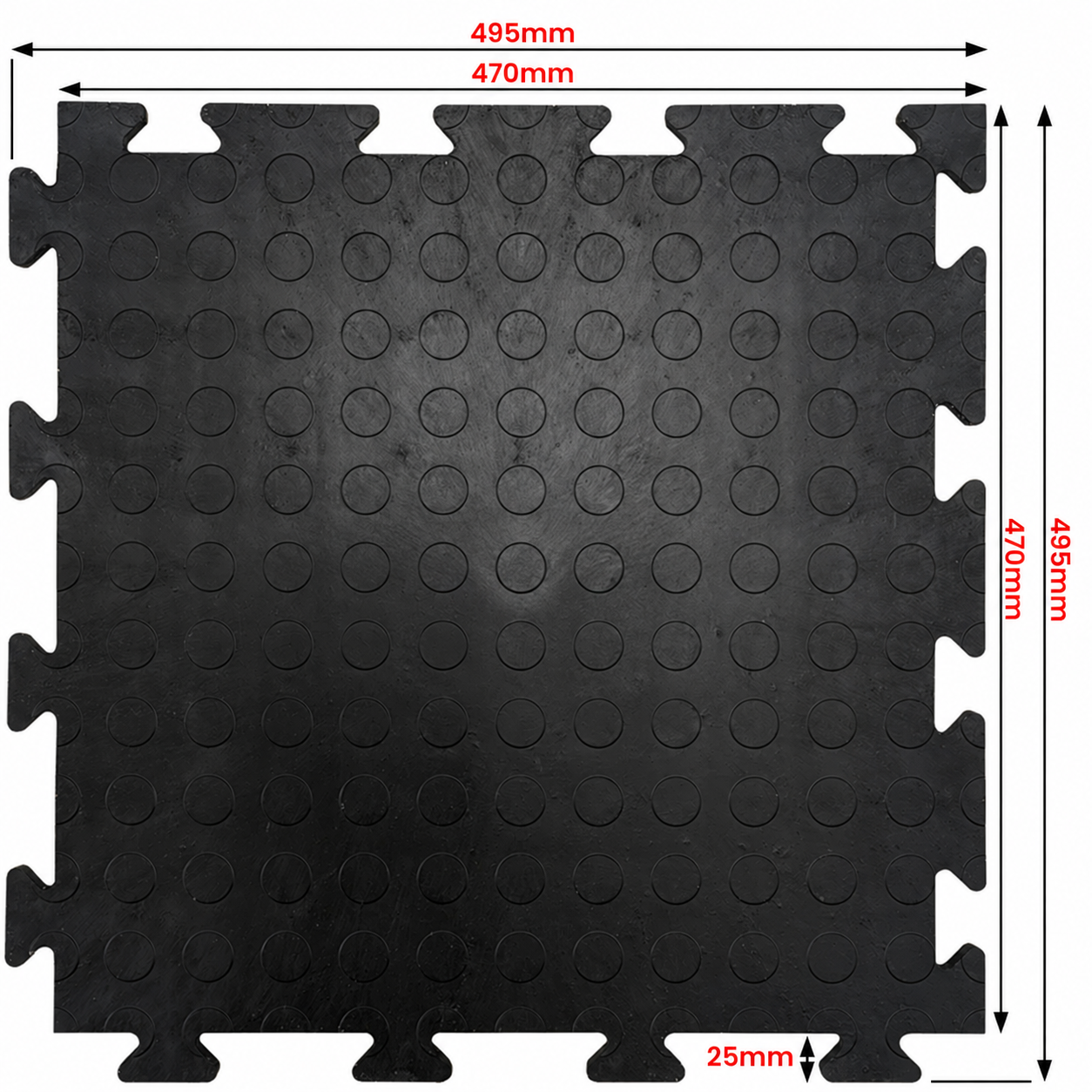

Each tile measures 470 mm × 470 mm, covering approximately 0.221 m². For a rectangular floor, round up the number of tiles required along both dimensions and multiply. Allow for cuts and trims; use the calculator above as a starting point.

Interlocking PVC tiles can usually be loose-laid on a suitable base. Adhesive may be required for specific applications, including tight turning areas, industrial wheeled traffic or direct sunlight. Follow the product's current installation instructions.

The PVC tile material is water resistant, but joints and exposed edges do not make the installed floor a waterproofing system. Water may reach the concrete below. Investigate persistent damp or water ingress before installation.

Yes. The interlocking design allows damaged tiles to be changed without recoating the entire floor. If possible, retain spares from your original order for the closest finish match.
