5x 24V Black 175mm Super Slim Rectangle Surface Mounted LED Under Cabinet Light and Driver Kit, 3 White Colours
BUY ANY 3 ITEMS & GET 5% OFF. ENTER "BUY3" AT CHECKOUT.

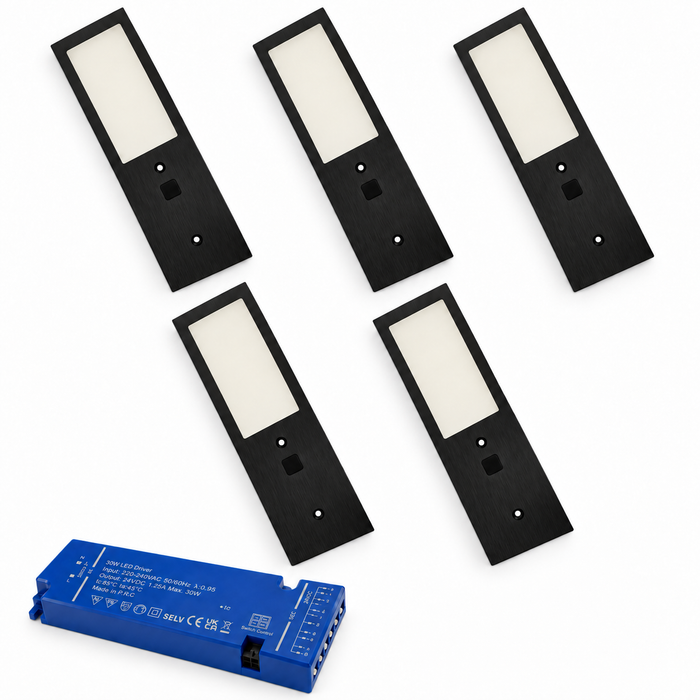

What is included?
5x Black 175mm slim rectangle LED lights, each with a 2m lead to connect to the driver.
1x 30W 24V LED driver.
1x 1m figure eight to bare ends mains lead.
LED lights technical specification
Surface mounting. 24V DC. 4W per light. 20W combined light load.
Selectable warm white 2700K, natural white 4000K or cool white 6000K, using the switch on each light.
Light output: 224 to 255lm per light. Beam angle: 120 degrees. Cable: 2m per light.
Dimensions per light: 175mm length by 50mm width by 6.8mm height.
Non dimmable. No touch sensor or dimmer is included.
Driver technical specification
30W capacity. 24V DC output. 6 light connection ports. Dimensions: 154mm by 55mm by 16.5mm.
Suitable for wall or cabinet mounting. Driver fixing screws are not included. For dry indoor use only. Do not expose to water.
A considered finish for your kitchen
A slim rectangular panel brings a refined, understated look to the underside of your cabinets. Its 6.8mm profile keeps the focus on the kitchen, while the front colour selector is easy to reach. Choose warm, natural or cool white on each fitting to suit your kitchen. The included driver converts mains electricity into 24V DC and is carefully selected to power the supplied lights, taking the guesswork out of matching the kit.
Installation and planning
Position the slim surface fitting under the cabinet and plan the cable route before fixing. The white tone selector is on the front face, so it remains accessible after installation.
Connect each light to a light port on the driver. Check cable reach before fixing anything and keep the driver accessible.
The supplied 1m figure eight to bare ends mains lead is for a wired connection. For a socket connection, use a compatible figure eight to UK plug lead with the correct fuse for the driver. A UK plug lead is not included. A qualified electrician should make the wired mains connection. The kit is for dry indoor use only and must not be exposed to water.
Compatible 2m and 5m extension leads are sold separately. We recommend no more than 5m of added extension cable per light.
Guarantee
Five year guarantee, comprising 12 months of cover plus a manufacturer extension bringing the total to five years.
