2x 24V Dimmable Aluminium Super Slim Round Surface Mounted LED Under Cabinet Light and Driver Kit, Warm White 3000K
BUY ANY 3 ITEMS & GET 5% OFF. ENTER "BUY3" AT CHECKOUT.

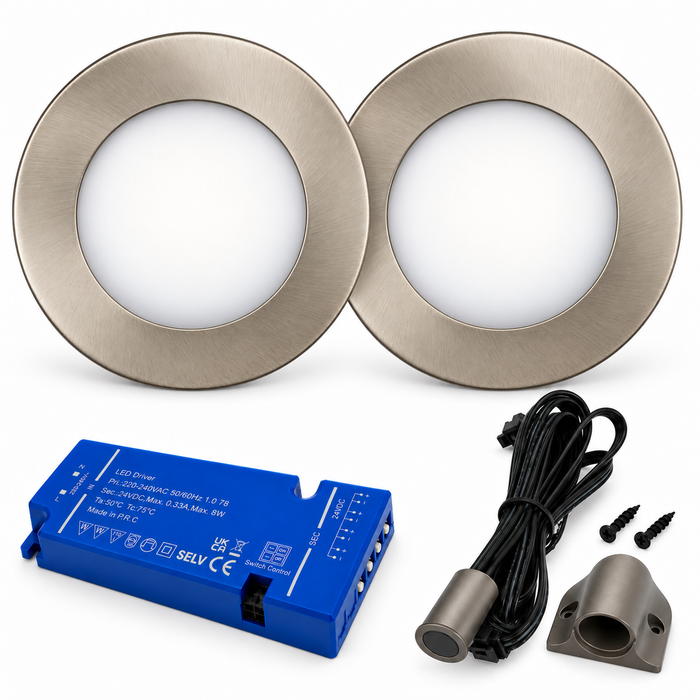

What is included?
2x Aluminium slim round LED lights, each with a 1.5m lead to connect to the driver.
1x 8W 24V LED driver.
1x Anthracite touch dimmer sensor with a surface mounting bracket.
1x 1m figure eight to bare ends mains lead.
LED lights technical specification
Surface mounting. 24V DC. 2W per light. 4W combined light load.
Warm White 3000K. Fixed white colour.
Light output: 125lm per light. Beam angle: 120 degrees. Cable: 1.5m per light.
Dimensions per light: 74mm diameter by 7mm height.
Dimmable using the included touch control.
Driver technical specification
8W capacity. 24V DC output. 4 light connection ports. Separate port for the touch sensor. Dimensions: 104mm by 48mm by 16.5mm.
Suitable for wall or cabinet mounting. Driver fixing screws are not included. For dry indoor use only. Do not expose to water.
Touch dimmer sensor technical specification
Tap to switch the lights on or off. Touch and hold to reduce brightness, then release and hold again to increase it. Your chosen brightness is remembered when switching off and on using the touch control.
Dimming range: 5 to 100 percent. Working voltage: 12 to 24V DC. Anthracite plastic finish. IP20, for dry indoor use.
Recess into a 12.2mm hole or fit using the supplied surface mounting bracket.
A considered finish for your kitchen
A slim circular fitting brings a soft, understated detail to your cabinetry. The 7mm profile sits close to the cabinet underside for a tidy appearance. Warm white adds a welcoming glow that sits comfortably alongside timber and warmer finishes. The included touch dimmer makes it easy to move from brighter task lighting to a gentler evening setting. The included driver converts mains electricity into 24V DC and is carefully selected to power the supplied lights, taking the guesswork out of matching the kit.
Installation and planning
Remove the trim ring, fix the surface mounting ring and keep the lead in its cable groove. Refit the light and attach the trim to its magnetic tabs. Plan the route of the 1.5m leads before fixing.
Connect each light to a light port on the driver. Connect the touch dimmer to the dedicated sensor port. Check cable reach before fixing anything and keep the driver accessible.
The supplied 1m figure eight to bare ends mains lead is for a wired connection. For a socket connection, use a compatible figure eight to UK plug lead with the correct fuse for the driver. A UK plug lead is not included. A qualified electrician should make the wired mains connection. The kit is for dry indoor use only and must not be exposed to water.
Compatible 2m and 5m extension leads are sold separately. We recommend no more than 5m of added extension cable per light.
Guarantee
Five year guarantee, comprising 12 months of cover plus a manufacturer extension bringing the total to five years.
