2x 24V Dimmable Aluminium Round Recessed LED Under Cabinet Light and Driver Kit, 3 White Colours

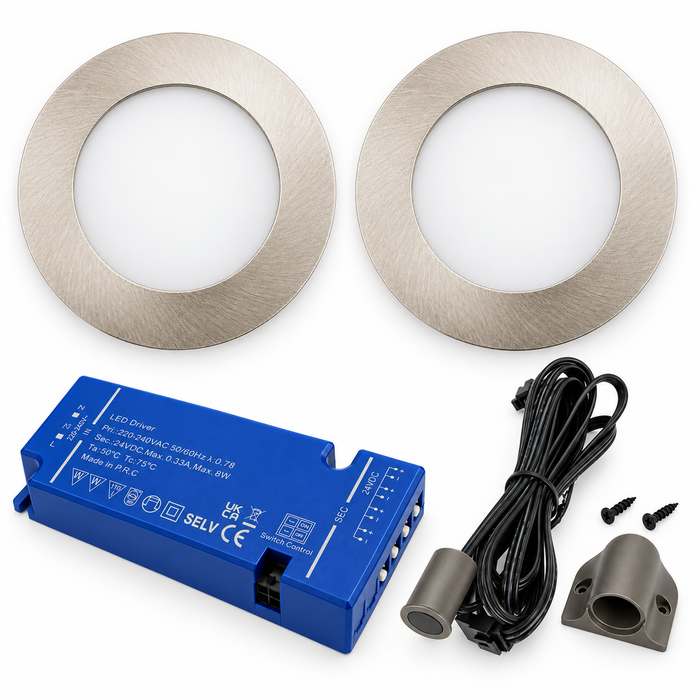

What is included?

2x Aluminium round recessed LED light with 2m driver lead.
1x 8W 24V LED driver.
1x Touch dimmer sensor.
1x 1m figure-eight to bare-end mains lead.

LED Light Technical Specification

2x aluminium round recessed LED light.
Recessed mounting.
Selectable warm, natural or cool white light.
Colour temperature: 2700K, 4000K or 6000K, selected using the switch on the light.
Operating voltage: 24V DC.
Power: 2W per light.
Total light load: 4W.
Light output: 150 to 180 lumens per light.
Beam angle: 120 degrees.
Cable length: 2m per light.
Dimensions: 65mm diameter x 14mm recessed depth.
Required cut-out: 58mm diameter.
Dimmable using the included touch dimmer.

Driver Technical Specification

1x 8W LED driver.
Output: 24V DC.
4x light connection ports.
Separate dedicated connection port for the included touch sensor.
Dimensions: 104mm x 48mm x 16.5mm.
Supplied with a 1m figure-eight to bare-end mains lead for a wired mains connection.

The driver can be wall or cabinet mounted, but mounting fixings are not supplied.

A compatible figure-eight to UK plug lead can also be used if you would prefer to connect the driver to a standard socket. If doing so, ensure the plug is fitted with the correct fuse.

For indoor use only. Do not expose the driver to water.

Touch Sensor / Dimmer Technical Specification

1x touch dimmer sensor in a sleek anthracite plastic finish.

Tap the sensor to switch the connected light on or off. Touch and hold to adjust the brightness. The first touch and hold will decrease the brightness. Release the sensor, then touch and hold again to increase the brightness.

The light will remember your selected brightness setting, even after being switched off and back on again.

Dimming range: 5 to 100 percent.
Working voltage: 12 to 24V DC.
IP20 rated for dry indoor use.
Can be recessed into a 12.2mm hole or surface mounted using the supplied bracket.

A Considered Finish for Your Kitchen

The compact, round diffused LED sits neatly within the cabinet for a discreet, integrated finish. Choose between warm, natural or cool white on the fitting to complement your kitchen and create the right atmosphere.

The included touch dimmer lets you move easily from brighter task lighting to a softer evening setting, while remembering your preferred brightness level for next time.

The included driver converts the mains supply to the 24V DC required by the light and has been carefully selected to suit the supplied fitting. The components are matched for you, making it easier to create a neat and reliable lighting setup without having to work out driver compatibility yourself.

Installation and Planning

Prepare a 58mm cut-out for the fitting and allow for the 14mm recessed depth, together with sufficient clearance for the cable.

Plan your cable route before installing the light and check that all cables will comfortably reach the driver before fixing anything permanently.

Select your preferred white colour temperature using the switch on the rear of the light before seating the fitting into the cabinet.

The light connects directly to one of the light output ports on the driver, while the touch dimmer connects to the driver's dedicated sensor port.

Keep the driver accessible after installation for future inspection or maintenance. If you have any doubts about making the mains connection, we recommend using a qualified electrician.

For indoor use only. Do not expose the light, driver or sensor to water.

Compatible 2m and 5m extension leads are available separately if additional cable length is required. We recommend adding no more than 5m of extension cable to each individual light.

Guarantee

Five-year guarantee.

Includes a 12-month standard guarantee, with extended manufacturer cover bringing the total guarantee period to five years.
