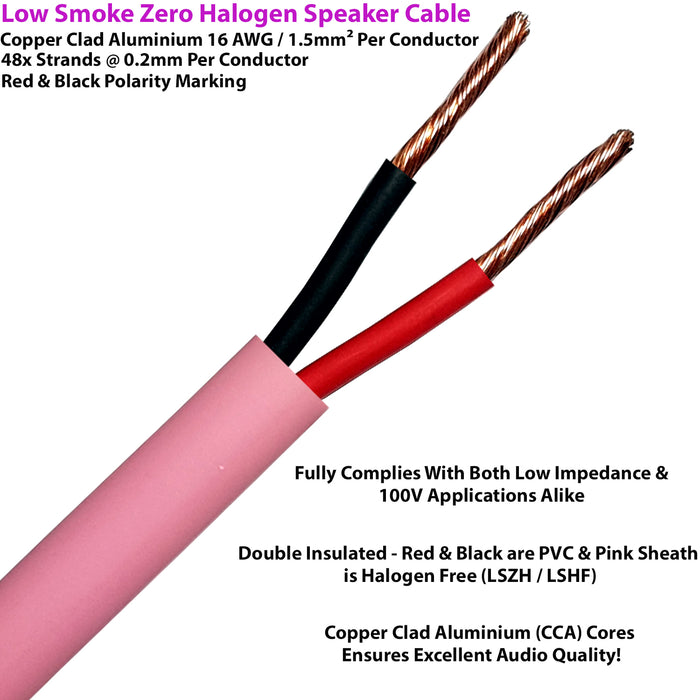

Low Smoke Speaker Cable - 16 AWG 1.5mm 6A - CCA LSZH 100V Double Insulated

Double Insulated Speaker Cable - Low Smoke Zero Halogen - 16 AWG

PLEASE NOTE - LENGTHS OF 50m & 25m may NOT be supplied on a reel.

What can it be used for?

You may use speaker cable to attach your amplifier to your speakers. As this cable is double insulated, it can be used for commercial grade 100V line amplifiers and speakers as well as low impedance Hi-Fi systems.

Technical Specification:

48 Strands with a 0.2mm diameter per core
Area Per Core - AWG 16 (1.5mm² Approx)
Copper Clad Aluminium - Ensures excellent sound quality
Outer Diameter - 6mm
Internal Insulation Diameter - 2.5mm
Insulation Nominal Thickness - 0.8mm
Max Current Rating - 6A
Colour - Pink
Red & Black Internally For Polarity - Easy connectivity

Low Smoke Zero Halogen (LSZH) - Low smoke zero halogen or sometimes known as Low Smoke Halogen Free (LSHF) cable is made of thermoplastic that emits a limited amount of smoke and no halogen when exposed to high heat sources such as fire. In a fire, a halogen-containing plastic material releases hydrogen chloride, a poisonous gas that forms hydrochloric acid when it meets water. Commonly used in buildings for safety in the event of a fire. Both the lilac outer sheath and internal black & red sheaths are manufactured from LSZH rated materials.

Additional Help

Depending on the power of your amp, you may require thicker speaker cable (higher contact area). We stock a wide range of speaker cable so please view our shop, if you require help, then please give us a call. An amplifier is constantly outputting power, in order for it to do this efficiently with less resistance, speaker cable that matches your system should be used. A good analogy is water flowing into a watering can and then out of a spout. If the spout is too small water will build up, however if a large spout is used water can flow freely. Good practices such as not cutting or breaking any of the individual strands when stripping speaker cable help to increase performance.

How to Use - Speaker cable should be inserted into amplifiers and speakers, then secured. The polarity also needs to be checked, this is where the positive and positive are connected together and the negative and negative are connected together. If you are unsure, please get in touch for technical advice.
