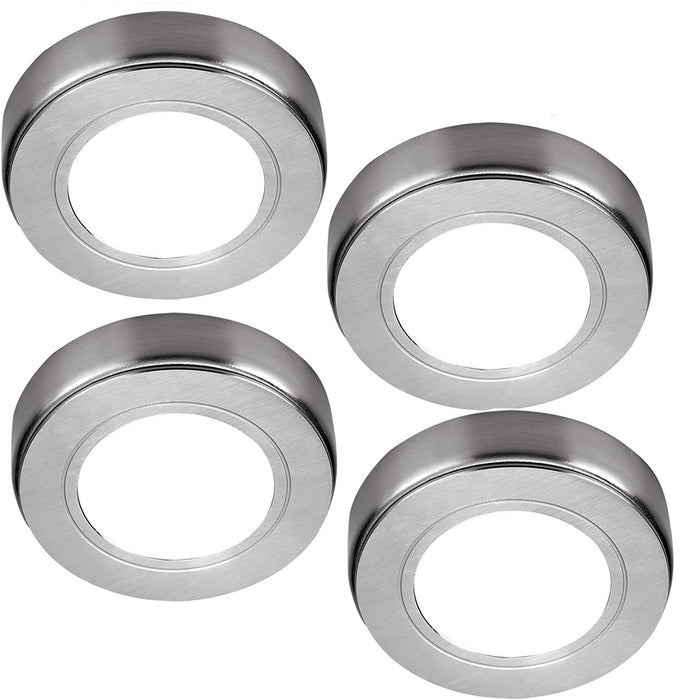

4x BRUSHED NICKEL Round Surface or Flush Under Cabinet Kitchen Light Kit - 240V Mains Powered - Warm White LED

SKU s172
Original price £63.49 - Original price £63.49
Original price
£63.49
£63.49 - £63.49
Current price £63.49

BUY ANY 3 ITEMS & GET 5% OFF. ENTER "BUY3" AT CHECKOUT.

240V Under Cabinet LED Lights

What’s included?

4x Warm White 240V, Surface or Recess Mounted LED Spotlights
1x 6 Port Distribution Block

Technical Specification:

LED Lights

Light Casing Colour – Brushed Nickel
Light Colour Appearance – Warm White
Colour Temperature – 3000 ÷ 3500 Kelvin
Voltage – 240V AC (per light)
Wattage – 2.6W (per light)
Life of Light – 30,000 hours
Luminous Efficiency – 75 Lm/W
Beam angle - 100°
Colour Rendering Index – Ra 81
Cable Length (per light) – 2m
IP20 Rated – Steam / Mist Proof

Dimensions
Diameter – 65mm
Depth (recessed) – 14.7mm (Thickness of standard kitchen cabinets is normally 15mm or more)
Spacer Depth - 16mm

Cutting Diameter Required (recessed) - 57mm

Distribution Block

Voltage Input – 240V AC (Mains)
6 Way / Port – A maximum of 6 lights can be connected
Cable Length – 1m
Size of Block – 73mm x 37mm x 14mm

What is a Distribution Block?

This compact connector block allows you to connect the supplied lights to the mains without having to individually wire up each one like most conventional lights. Each light has a connector on the end of its cable that slots into the ports on the distribution block. You then only have to wire the 1 connection from the distribution block to the mains. You can also wire this to any standard light switch allowing you to control the lights from an existing switch or you can install a new one (under your cabinets for example)

How to Mount?

These lights are designed to be recess or flush mounted under/in a cabinet or to a wall. Each light will require a 57mm cut out if recess mounting. The lights are held in place by two metal spring clips, on either side of the light. Simply connect the lights to the distribution block, one light per port, the block then connects to the mains.

When cutting out any material for recess mounting, ensure that a clean round cut is made for the best fit. This can be achieved via a core drill etc…

Overview:

This range of LED lighting is ideal to modernise any kitchen in an affordable way. Our lights pack the punch of a halogen bulb with the life and energy efficiency of an LED. Each light has a diffused cover, so no individual LED points are visible, providing a whole beam effect. Each bulb will last for over 30,000 hours & on average, will last 16 years, after this period the bulbs will only reduce slightly in brightness & continue to work.

Further information:

Each light and distribution block can be sold individually and many accessories such as switches ETC can be purchased if required.

If you need any technical support at all or would like help choosing the best lights for your space, don’t hesitate to get in touch and will be more than happy to help.
